Location - The
relay is located inside the aft power junction box in the
tailcone. Open Access panel 311AZ
and remove the aft junction box cover to access the relay.

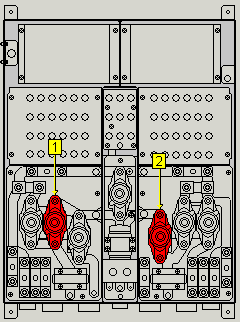

View of
aft power junction box
1. Left
Start Relay (KZ007)
2. Right
Start Relay (KZ008)
Operation -
The right start relay connects the Right Starter/Generator (SG2)
to the DC bussing system. The relay is controlled by the
Right Start PC Board (NZ010).
