Starting System
Right Starter/Generator (SG2)

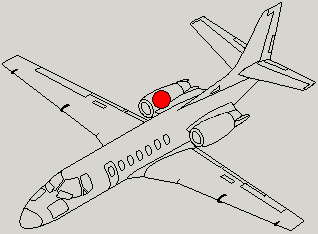

Location - The starter/generator is located on the bottom surface of the right engine.  Plug P92 is connected to the receptacle for the starter/generator magnetic pick-up.  Remove the lower cowl to access the starter/generator.

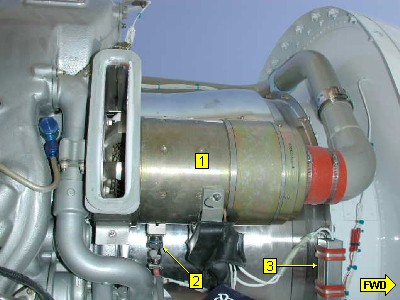

View looking up at right starter/generator

1.  Right Starter/Generator (SG2)
2.  Plug P92
3.  Capacitor (CE003)
Operation - The right starter/generator is rated at 30 VDC and 300 amps.  The starter/generator voltage output is controlled by the Right Generator Control Unit (BT002).  The generator control unit regulates the starter/generator output at 28.5 ±0.1 VDC.  Starter/generator cooling is accomplished by utilizing fan bypass air ducted to the forward end of the starter/generator.

NOTE: The measured resistance between pins A and B on the receptacle for the starter/generator magnetic pickup is approximately 30 ±10 ohms.

Terminals

Functions

A Field excitation for the starter/generator.  Connected to pin AA on the generator control unit (GCU).  The GCU applies a variable voltage to the field windings during engine start to control the starter/generator torque output.
B 28 VDC input from the Right Start Relay (KZ008) during start
D Starter/generator interpole winding voltage reference.  Connected to pin W on the GCU.  The GCU monitors the voltage on the interpole windings to control field excitation
E Airframe Ground GT002
